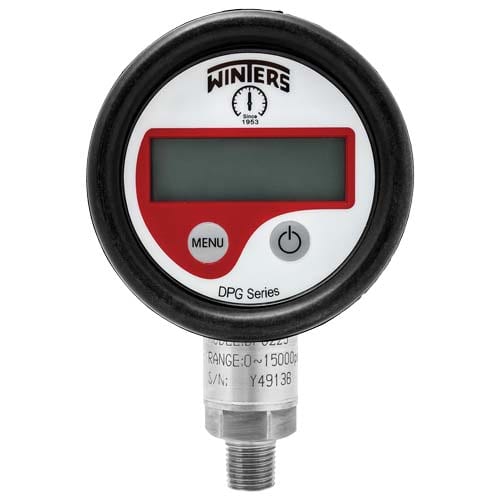

0-103 BAR / 0-1500 PSI, 1/4" NPT DOWN, DIGITAL PRESSURE GAUGE, S316
PG SKU: DPG220- Simple 2 button operation
- Reset to zero feature
- Backlight turns on when on/off button is pressed
- Option for display to remain continuously on
- Continuous Peak pressure indication option
- 316L welded diaphragm seal
- Rubber boot is standard
- ASME B40.100 compliant
- RoHS compliant
- ±1% accuracy (±0.5% optional for gauges up to 10,000 psi)
Salgs- og leveringsbetingelser
Spørg på leveringstid, hvis ikke på lager
| Case Size | 2.5″ (63mm) |
| Case Material | ABS |
| Rubber Boot | Silicone rubber |
| LCD Display | 2″ x 3/4″ (48mm x 16mm) |
| Connection | 1/4″ NPT 304SS |
| Sensor | 316L welded, Piezo |
| Operation Life | 1 million cycles |
| Power Supply | 2 x AAA battery (1.5V) |
| Battery Life | 2yrs (auto shut-off mode) |
| Power Mode | Auto or manual shut-off |
| Display Digits | 4 digits to 5,000 psi 5 digits for10,000 psi and 15,000 psi |
| Pressure Unit Selection | psi, mH2O, mmHg, mbar, kPa ranges ≤ 100 psi psi, bar, kgf/cm2, MPa, atm ranges ≥ 160 psi |
| Response Time | ≤ 3 Hz display refresh rate |
| Proof / Burst Pressure | 200% / 300% FS |
| Operating / Storage Temperature | Operating: 14°F to 122°F (-10°C to 50°C) Storage: -4°F to 167°F (-20°C to 75°C) |
| Accuracy | ±1% (±0.5% optional for gauges up to 10,000 psi) |
| Enclosure Rating | IP60 |
