Lager:
YES

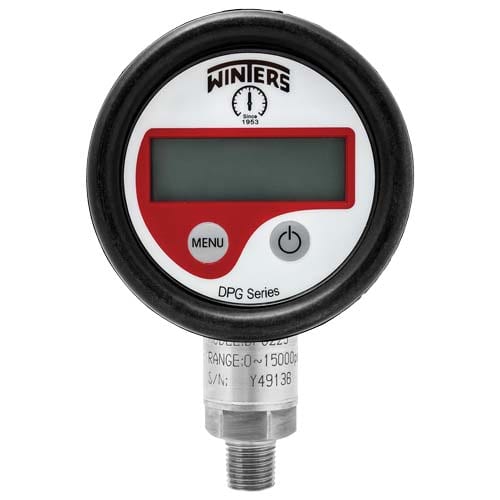

0-600 PSI, DIGITAL PRESSURE GAUGE, 1/4" NPT

PG SKU: DPG218 https://odoo.pgflowteknik.dk/web/image/product.template/25129/image_1920?unique=34f8759
    Login to see the price

    This combination does not exist.

    • Simple 2 button operation
    • Reset to zero feature
    • Backlight turns on when on/off button is pressed
    • Option for display to remain continuously on
    • Continuous Peak pressure indication option
    • 316L welded diaphragm seal
    • Rubber boot is standard
    • ASME B40.100 compliant
    • RoHS compliant
    • ±1% accuracy (±0.5% optional for gauges up to 10,000 psi)


    Salgs- og leveringsbetingelser

    Spørg på leveringstid, hvis ikke på lager

    Case Size2.5″ (63mm)
    Case MaterialABS
    Rubber BootSilicone rubber
    LCD Display2″ x 3/4″ (48mm x 16mm)
    Connection1/4″ NPT 304SS
    Sensor316L welded, Piezo
    Operation Life1 million cycles
    Power Supply2 x AAA battery (1.5V)
    Battery Life2yrs (auto shut-off mode)
    Power ModeAuto or manual shut-off
    Display Digits

    4 digits to 5,000 psi

    5 digits for10,000 psi and 15,000 psi

    Pressure Unit Selection

    psi, mH2O, mmHg, mbar, kPa ranges ≤ 100 psi

    psi, bar, kgf/cm2, MPa, atm ranges ≥ 160 psi

    Response Time≤ 3 Hz display refresh rate
    Proof / Burst Pressure200% / 300% FS
    Operating / Storage Temperature

    Operating: 14°F to 122°F (-10°C to 50°C)

    Storage: -4°F to 167°F (-20°C to 75°C)

    Accuracy±1% (±0.5% optional for gauges up to 10,000 psi)
    Enclosure RatingIP60
